Low Altitude Drone Jammer FPV Blocker with Radar Detecting and Eo Camera Identify up to 2km

Brand Name : PTC

Model Number : UAVD2.0

Certification : ISO 9000

Place of Origin : Shenzhen China

MOQ : 1set

Price : Contact Us

Payment Terms : T/T, Western Union

Supply Ability : 50000

Delivery Time : 10-20days

Packaging Details : Carton

Model NO. : PTC-UAVD2.0

Camerna Resolution : 1080p

Radaw Detecion Distance : 3-5km

Jamming Distance : >1000m

Contact Now

Product Instructions:

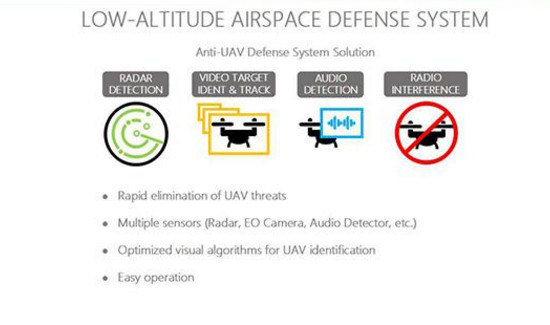

The low altitude Anti-UAV system is designed to monitor unwanted UAV potential malicious activities.

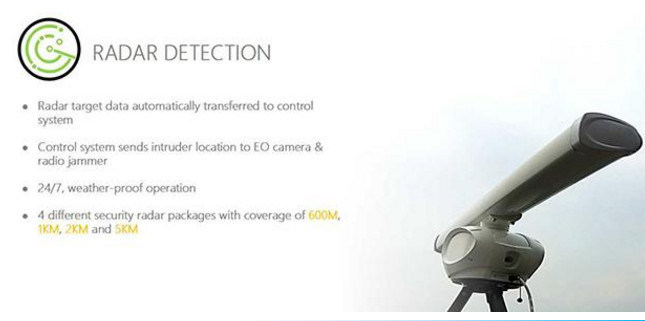

The system uses frequency-modulated continuous wave radar and photoelectric cooperative detection system as the main technical means. The radar detects the target at a long distance, the dual camera completes the search, detection and recognition of the UAV within the line of sight, and drives the identified UAV Or forced landing.

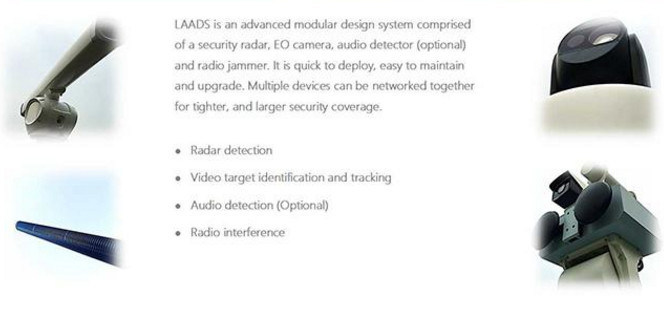

The system is scalable, allowing detection devices to access audio snooping, radio detection and radar equipment. System can be used within a network to meet the needs of different applications.

Product Specification:

Equipment	Functions, Features Description
Starlight HD camera	Resolution: 1080p Clear sky: ≥ 1000 m Night vision: > 500 m
Radar	System: FMCW RCS: 0.01 Detection range: > 5 km
Radio detection module	Spectral analysis Direction detection Frequency Range: ISM typical frequency band Range: > 2km, Directional accuracy: 1~3°R.M.S
Audio detection module	Range: 200 m
Fixed Unmanned Aerial Vehicle Jamming Equipment	Range: > 1000 m, with the omni antenna
GPS Cheating module	Power: 10 w Range: ≤ 5 km
Anti-UAV module	Band: 2.4GHz, bandwidth 100MHz 5.8GHz, bandwidth 40MHz 1.5GHz, bandwidth 40MHz Range: ≥ 1000 m
Portable Anti-UAV module	Band: 2.4GHz, bandwidth 100MHz 5.8GHz, bandwidth 40MHz 1.5GHz, bandwidth 40MHz Range: ≥ 500 m
Command and Dispatch system	Multi-target processing capability: 20 batches

Low Altitude Drone Jammer FPV Blocker with Radar Detecting and Eo Camera Identify up to 2km
