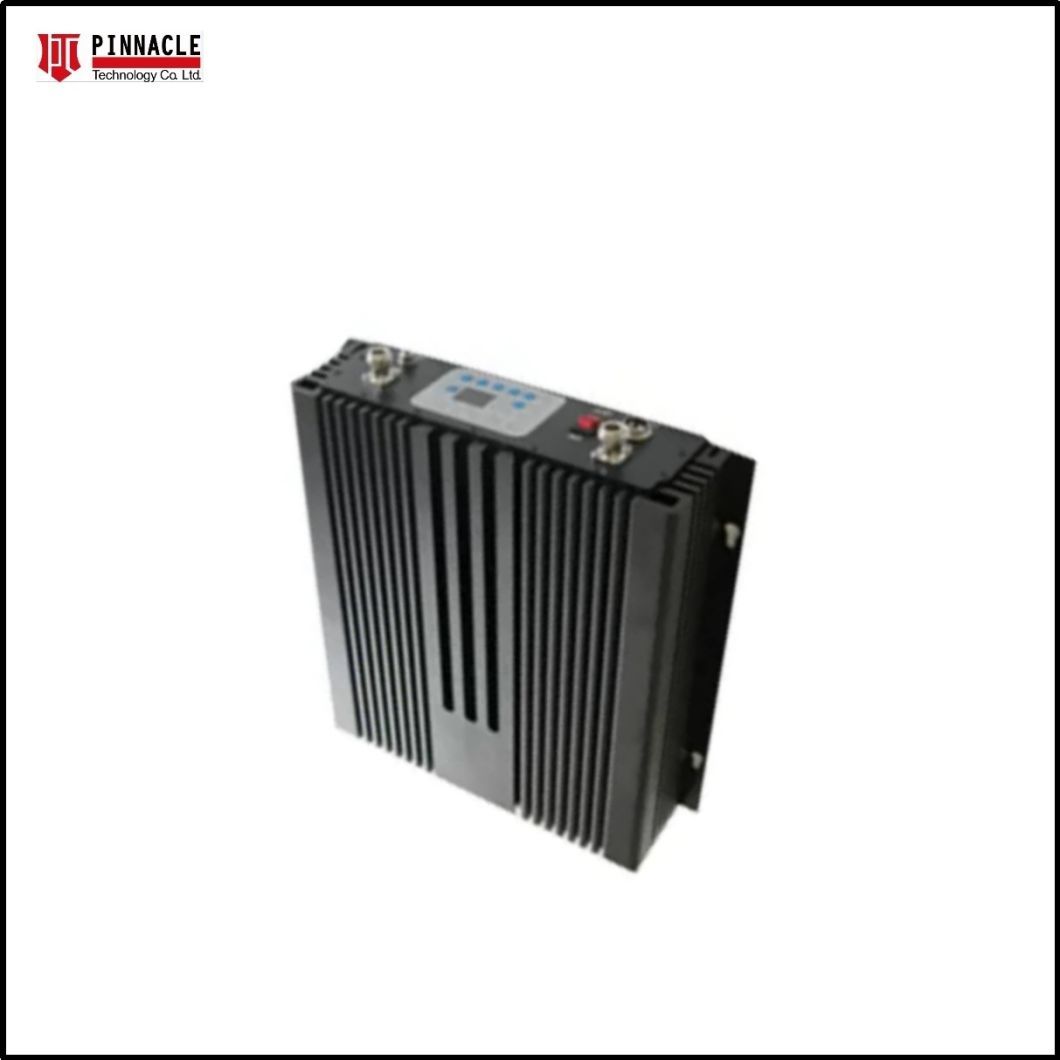

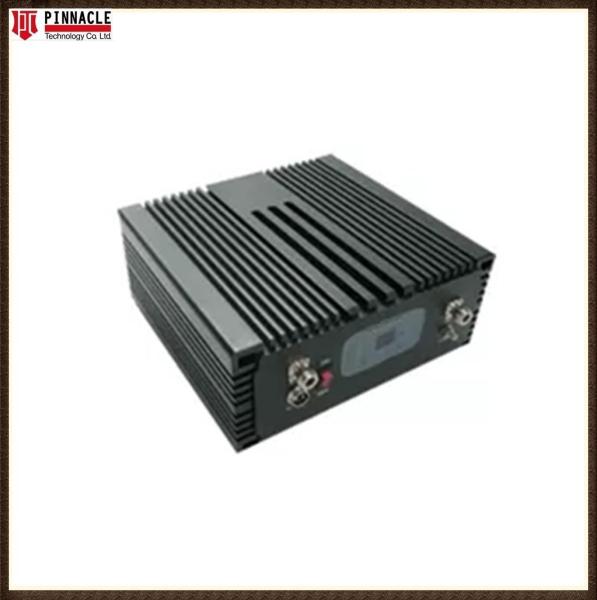

Wireless GSM 4G Mobile Cell Phone Signal Booster Repeater Dual Band Signal Booster

Brand Name : PTC

Model Number : 2D16B

Certification : ISO 9000

Place of Origin : Shenzhen China

MOQ : 1set

Price : Contact Us

Payment Terms : T/T, Western Union

Supply Ability : 50000

Delivery Time : 10-20days

Packaging Details : Carton

Model NO. : PTC-2D16B

Frequency Band : Dcs and 4G-2600MHz

Output Power : 15dBm

Dimension : 295*283*76mm

Contact Now

Product Description

Dcs 4G Lte Dual Band Selective Ics Pico Repeater

Model: PTC -2D16B

Product Instructions

The Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Product Advantages
  • Two signal ports with full duplex design
  • High system gain
  • Linear power amplification to effectively suppress inter-modulation and spurious emission
  • Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
  • Unique color LEDs to indicate power supply and state and alarm
  • Simple installation with external AC/DC adapter

Product Application

Applications

Wireless GSM 4G Mobile Cell Phone Signal Booster Repeater Dual Band Signal Booster
  • To expand signal coverage or fill signal blind area where signal is weak or unavailable.
  • Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots
  • Application Diagram





Technical Specifications

Items DCS 4G LTE
Frequency Range
(Customized)		 Uplink 1710~1785MHz 2500~2570MHz
Downlink 1805~1880MHz 2620~2690MHz
Working Bandwidth(DL/UL Selective) 75MHz 60MHz
Gain(Uplink/Downlink) ≥ 70dB ≥ 70dB
Output Power (Customized) 15dBm 15dBm
Manual Gain Control ≥31dB
AGC Control Range ≥20dB
Max, Input Power Without Damage ≤0dBm
In-Band Power Ripple ≤ 6Db(P-P) ≤3dB/3.84MHz
VSWR ≤ 2
Group Delay Time ≤5ìs
I/O Impedance 50Ù
Noise Figure ≤8dBm
Out-of Band Gain(DL&UL) ±2.5MHz ≤3dB
±5MHz ≤15dB		 2.7 ≤ f offset <3.5MHz ≤ 60dB
3.5 ≤ f offset <7.5MHz ≤ 45dB
12.5 ≤ f offset ≤ 35dB
Spurious Emission 9kHz~1GyZ : ≤ 60dBm/30kHz
1GHz~12.75GHz: 30dBm/30kHz
Third-order Inter-Modulation Max:-40dBc
RF Connector N-Type(Female)
Power Consumption ≤40W
Power Supply AC 100~240V
Dimensions 295*283*76mm
Weight ≤5.6kg
Alarm Monitoring System Alarm for uplink self-oscillation
Indication LED Power supply, Alarm, state
Operation Temperature -10~50ºC
IP Rating IP30
Humidity ≤95%
